Tubes acier TU37

TUBES ACIER TU 37


Références ø Exterieur ø Interieur Epaisseur Section mm2 Inertie mm4
51399 8 6 1 22 137
51400 10 8 1 28 290
51428 10 6 2 50 427
51401 12 10 1 35 527
51426 12 8 2 63 816
51402 14 12 1 41 867
51403 14 8 3 104 1684
51431 14 10 2 / /
51404 16 14 1 47 1331
51432 16 13 1,5 68 1815
51405 18 16 1 53 1935
51406 18 15 1,5 78 2667
51427 18 14 2 100 3266
51408 20 18 1 60 2700
51420
20  17  1,5  87  3752
51421 20 14 3 160 5965

Références ø Exterieur ø Interieur Epaisseur Section mm2 Inertie mm4
51422 20 10 5 236 7359
51410 22 20 1 66 3643
51433 22 18 2 126 6346
51411 25 23 1 75 5435
51412 25 22 1,5 111 7672
51413 25 21 2 144 9623
51414 25 20 2,5 177 11315
51415 25 19 3 207 12771
51416 28 26 1 85 7736
51417 28 25 1,5 125 10992
51418 30 28 1 91 9584
51423 30 25 2,5 216 20576
51419 32 29 1,5 232 25385
51424 35 33 1 107 15440
51429 40 35 2,5 294 51976

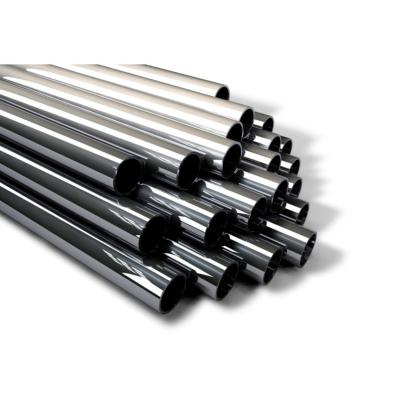

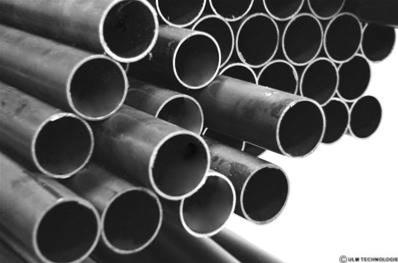

Tube alliage de qualité, sans soudure à la norme NFA 49310 et étiré à froid. La tolérance des mesures font en sorte que les tubes ne  sont pas coulissants. La résistance à la charge de rupture est de 42 kg / mm² minimum, elle peut s'élever jusqu'à 45 kg / mm² selon les dimensions du tube et l’épaisseur.

Ces tubes conviennent très bien au soudage. Ils peuvent remplacer dans certain cas l'acier chrome / molybdène ou le 4130, par un léger surplus de poids à résistance égale, mais à un prix très inférieur ou pour la réalisation de prototype à moindre coût.

↓ CARACTÉRISTIQUES TECHNIQUES ↓

Alliage : TU 37 BQ2 → ÉquivalentST 37

Charge de rupture : 420 N / mm² minimum

Limite élastique : 340 N / mm² minimum

Allongement : 23 %

(Code: 51399)
Tube acier TU 37 B - 8 x 1 mm
24,37 €
Tube acier TU 37 BQ2 - 8 x 1 mm - Vendu au mètre
(Code: 51400)
Tube acier TU 37 B - 10 x 1 mm
23,87 €
Tube acier TU 37 BQ2 - 10 x 1 mm - le mètre.
(Code: 51401)
Tube acier TU 37 B - 12 x 1 mm
25,50 €
Tube acier TU 37 BQ2 - 12 x 1 mm - le mètre.
(Code: 51402)
Tube acier TU 37 B- 14 x 1 mm
22,86 €
Tube acier TU 37 BQ2 14 x 1 mm - Vendu au mètre
(Code: 51403)
Tube acier TU 37 B - 14 x 3 mm
21,25 €
Tube acier TU 37 BQ2 14 x 3 mm - Vendu au mètre
(Code: 51404)
Tube acier TU 37 B - 16 x 1 mm
15,79 €
Tube acier TU 37 BQ2 - 16 x 1 mm - Vendu au mètre
(Code: 51405)
Tube acier TU 37 B - 18 x 1 mm
12,78 €
Tube acier TU 37 BQ2 - 18 x 1 mm - Vendu au mètre
(Code: 51406)
Tube acier TU 37 B - 18 x 1,5 mm
15,24 €
Tube acier TU 37 BQ2 18 x 1.5 mm - Vendu au mètre
(Code: 51408)
Tube acier TU 37 B - 20 x 1 mm
17,18 €
Tube acier TU 37 BQ2 - 20 x 1 mm - Vendu au mètre
(Code: 51410)
Tube acier TU 37 B - 22 x 1 mm
20,56 €
Tube acier TU 37 BQ2 22 x 1 mm - Vendu au mètre
(Code: 51411)
Tube acier TU 37 B - 25 x 1 mm
19,32 €
Tube acier TU 37 BQ2 - 25 x 1 mm - Vendu au mètre
(Code: 51412)
Tube acier TU 37 B  - 25 x 1,5 mm
24,96 €
Tube acier TU 37 BQ2 25 x 1.5 mm - le mètre.
(Code: 51413)
Tube acier TU 37 B - 25 x 2 mm
23,94 €
Tube acier ST 37 - 25 x 2 mm - Vendu au mètre
(Code: 51414)
Tube acier TU 37 B - 25 x 2,5 mm
40,80 €
Tube acier ST 37 - 25 x 2,5 mm - Vendu au mètre
(Code: 51415)
Tube acier TU 37 B - 25 x 3 mm
25,91 €
Tube acier ST 37 - 25 x 3 mm - Vendu au mètre
(Code: 51416)
Tube acier TU 37 B - 28 x 1 mm
17,16 €
Tube acier TU 37 BQ2 28 x 1 mm - Vendu au mètre
(Code: 51417)
Tube acier TU 37 B - 28 x 1,5 mm
36,88 €
Tube acier TU 37 BQ2 28 x 1.5 mm - Vendu au mètre
(Code: 51418)
Tube acier TU 37 B - 30 x 1 mm
30,85 €
Tube acier TU 37 BQ2 30 x 1 mm - Vendu au mètre
(Code: 51419)
Tube acier TU 37 B - 32 x 1,5 mm
24,34 €
Tube acier TU 37 BQ2 - 32 x 1.5 mm - Vendu au mètre
(Code: 51420)
Tube acier TU 37 B - 20 x 1,5 mm
18,05 €
Tube acier TU 37 BQ2 20 x 1.5 mm - Vendu au mètre
(Code: 51421)
Tube acier TU 37 B - 20 x 3 mm
24,46 €
Tube acier ST 37 - 20 x 3 mm - Vendu au mètre
(Code: 51422)
Tube acier TU 37 B - 20 x 5 mm
40,18 €
Tube acier TU 37 BQ2 - 20 x 5 mm - Vendu au mètre
(Code: 51423)
Tube acier TU 37 B - 30 x 2,5 mm
29,57 €
Tube acier TU 37 BQ2 - 30 x 2.5 mm - Vendu au mètre
(Code: 51424)
Tube acier TU 37 B - 35 x 1 mm
26,21 €
Tube acier TU 37 BQ2 - 35 x 1 mm - le mètre.
(Code: 51426)
Tube acier TU 37 B - 12 x 2 mm
26,42 €
Tube acier TU 37 BQ2 - 12 x 2 mm - Vendu au mètre
(Code: 51427)
Tube acier TU 37 B - 18 x 2 mm
20,69 €
Tube acier TU 37 BQ2 - 18 x 2 mm - Vendu au mètre
(Code: 51428)
Tube acier TU 37 B - 10 x 2 mm
13,10 €
Tube acier TU 37 BQ2 - 10 x 2 mm - le mètre.
(Code: 51429)
Tube acier TU 37 B - 40 x 2,5 mm
57,16 €
Tube acier TU 37 BQ2 - 40 x 2.5 mm - Vendu au mètre
(Code: 51431)
Tube acier TU 37 B - 14 x 2 mm
15,37 €
Tube acier TU 37 BQ2 -14 x 2 mm - Vendu au mètre
(Code: 51432)
Tube acier TU 37 B - 16 x 1.5 mm
15,00 €
Tube acier ST 37 - 16 x 1.5 mm - Vendu au mètre
